Tunnelling Induced Ground Settlement

Tunneller

June 23, 2024

This app is a method to calculate ground settlement and the strain induced on buildings due to tunnelling.

‍

Click the link below:

Building Strain and Ground Settlement Induced by Tunnelling App

‍

The framework for this app is coherent with the Australian Tunnelling Society methodology. The presentation below is sponsored by Engineers Australia. The relevant sections starts at 33:18 min by Geoffrey Chan.

‍

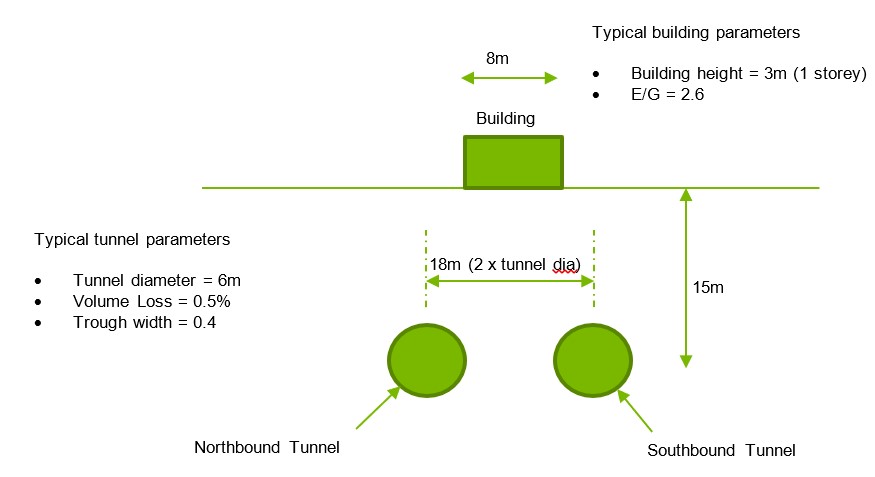

The app has been benchmarked against XDisp using the configuration problem below:

‍

The following are the predicted settlement results from this app :

Fig. 3. The settlement prediction from this App

‍

The calculated strain results from XDisp (upper image) and this app (lower image) are shown below, and the same results are obtained.

‍

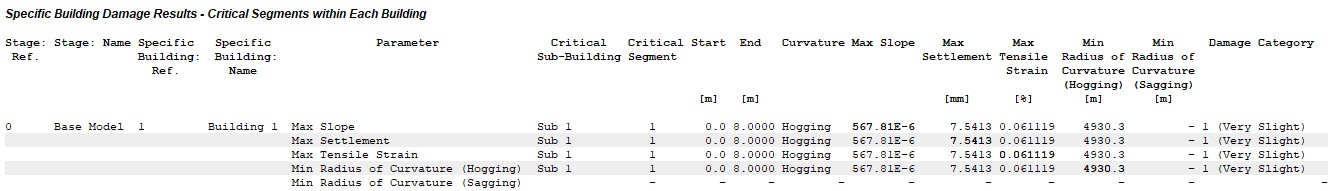

XDisp:

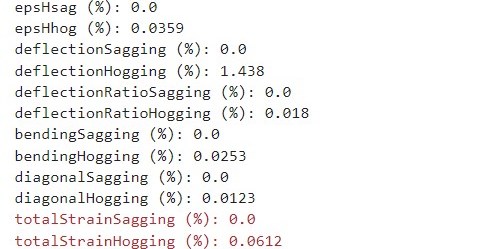

This App:
